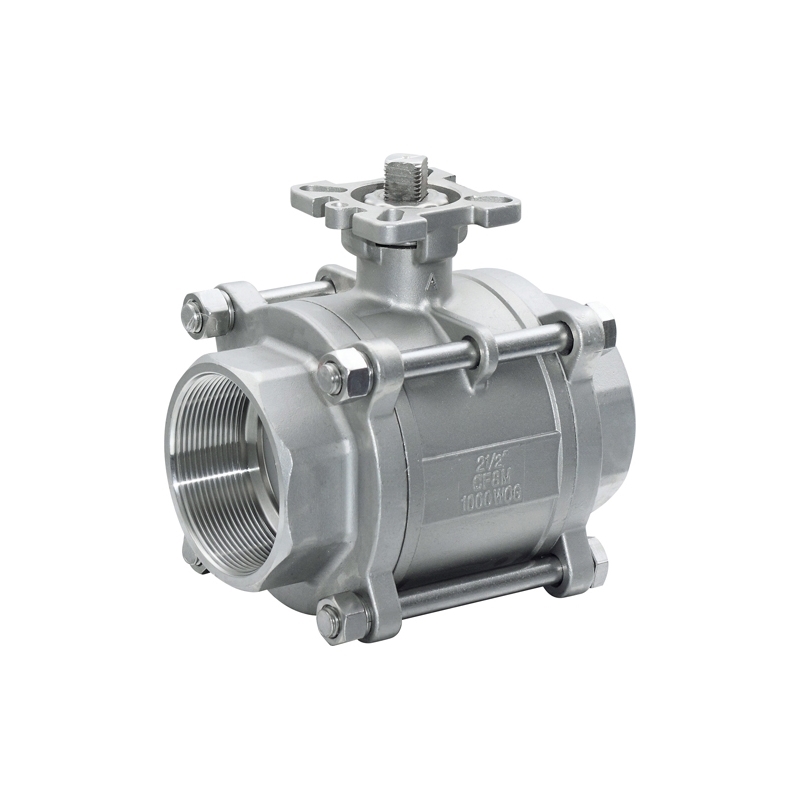

SS 316 3-Piece Full Port Ball Valve 1000 RPTFE FNPT - ISO Direct mount

3-PC Full Port Ball Valve Size: 1/4" to 4" 316 Stainless Steel

Investment Cast Stainless Steel with Full Port Body
NPT Threaded End Connection (ANSI B1.20.1)
High Mounting Pad Fully Complies with ISO 5211
Lockable Handle, High-Mounted Design
Blow-Out-Proof Stem Design
Available in R-PTFE, or High-Temp PTFE (When Requested) seat
Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application
Design fully complies with ASME B16.34
Tested in accordance to API 598

Click to download cutsheet.

1/4" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/25

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

3/8" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/35

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

1/2" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/50

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

3/4" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/75

ADD Pneumatic Actuator

AN-050D Double acting
AN-050S Spring return

1" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct MOUNT RPTFE

Availability: In stock

SKU: BVH13R6N/1000/100

ADD Pneumatic Actuator

AN-050D Double acting
AN-063S Spring return

1 1/4" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/125

ADD Pneumatic Actuator

AN-063D Double acting
AN-075S Spring return

1 1/2" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/150

ADD Pneumatic Actuator

AN-075D Double acting
AN-090S Spring return

2" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/200

ADD Pneumatic Actuator

AN-075D Double acting
AN-090S Spring return

2 1/2" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/250

ADD Pneumatic Actuator

AN-090D Double acting
AN-090S Spring return

3" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/300

ADD Pneumatic Actuator

AN-100D Double acting
AN-125S Spring return

4" SS 316 3-Piece Full Port Ball Valve 1000 FNPT ISO Direct RPTFE

Availability: In stock

SKU: BVH13R6N/1000/400

ADD Pneumatic Actuator

AN-125D Double acting
AN-145S Spring return

Description

Click to download cutsheet.

Investment Cast Stainless Steel with Full Port Body
NPT Threaded End Connection (ANSI B1.20.1)
High Mounting Pad Fully Complies with ISO 5211
Padlocking Device Handle for Valve Locakability, High-Mounted Design
Blow-Out-Proof Stem Design
Available in R-PTFE, or High-Temp PTFE (When Requested) seat
Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application
Design fully complies with ASME B16.34
Tested in accordance to API 598
