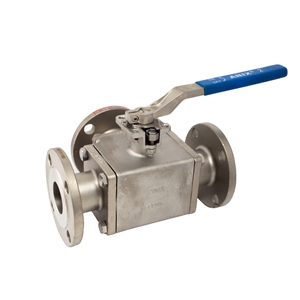

Picture of SS CF8M 3 Way L Port Ball Valve 150 Flanged - ISO Direct mount

Picture of SS CF8M 3 Way L Port Ball Valve 150 Flanged - ISO Direct mount

SS CF8M 3 Way L Port Ball Valve 150 Flanged - ISO Direct mount

3-Way Flanged Ball Valve 316 SS
Sizes: 1" to 4"

ANIX VALVE CF8M Flanged 3-Way Ball Valve
T port, L port, Stainless Steel
Full Bore, Pad locking device
Blow-out-proof stem design
High and Low Mounted pad: ISO 5211
Design: ASME B16.34
Face to Face - ASME B16.10
Flange end connection - ASME16.5
Test and inspection inaccordance with API 598
Working Pressure Class 150
Temperature Range -20F to 356F for RPTFE -20F to 302F for PTFE
Application medium: Water, Oil and Gas.
Sizes: 1" to 4"

Click here to download cut sheet.

Click to download product literature.

2" SS CF8M 3 Way Flanged L Port Ball Valve 150 Flanged RPTFE - ISO Direct mount

Availability: In stock

SKU: BV44R6F/150/200

ADD Pneumatic Actuator

AN-090D Double acting
AN-125S Spring return

2 1/2'' SS CF8M 3 Way Flanged L Port Ball Valve 150 Flanged PTFE - ISO Direct mount

Availability: In stock

SKU: BV44F6F/150/250

ADD Pneumatic Actuator

AN-100D Double acting
AN-145S Spring return

3" SS CF8M 3 Way Flanged L Port Ball Valve 150 Flanged RPTFE - ISO Direct mount

Availability: In stock

SKU: BV44R6F/150/300

ADD Pneumatic Actuator

AN-125D Double acting
AN-160S Spring return

4" SS CF8M 3 Way Flanged L Port Ball Valve 150 Flanged PTFE - ISO Direct mount

Availability: In stock

SKU: BV44F6F/150/400

ADD Pneumatic Actuator

AN-145D Double acting
AN-190S Spring return

Description

Click here to download cut sheet.

Click to download product literature.

ANIX VALVE CF8M Flanged 3-Way Ball Valve
T port, L port, Stainless Steel
Full Bore, Pad locking device
Blow-out-proof stem design
High and Low Mounted pad: ISO 5211
Design: ASME B16.34
Face to Face - ASME B16.10
Flange end connection - ASME16.5
Test and inspection inaccordance with API 598
Working Pressure Class 150
Temperature Range -20F to 356F for RPTFE -20F to 302F for PTFE
Application medium: Water, Oil and Gas.
Sizes: 1" to 4"
