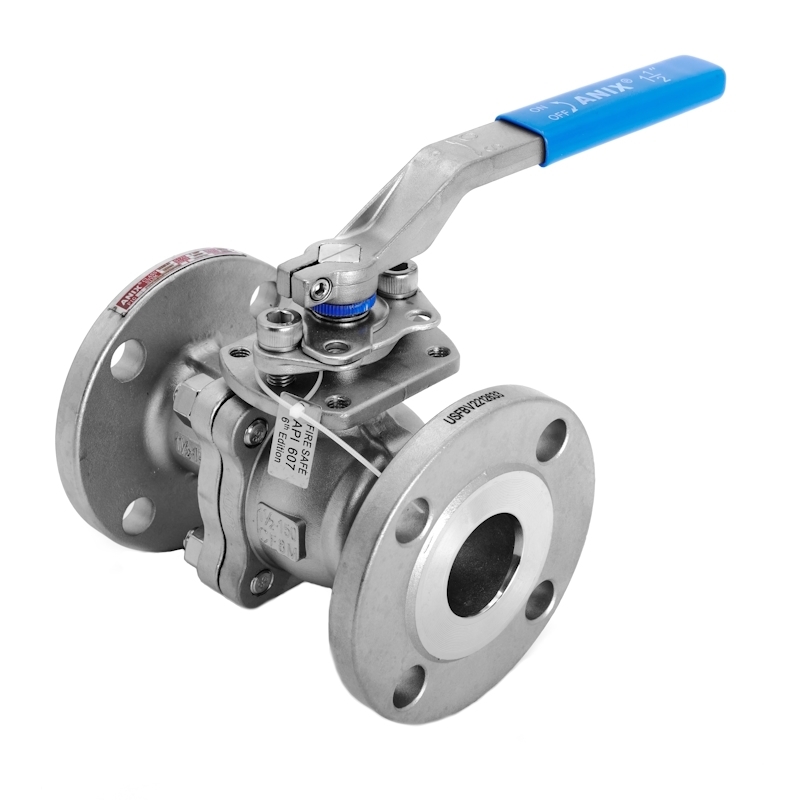

- Anix CF8M Flanged 2PC Full Bore Ball Valve ANSI 150
- CF8M Full Port Body
- SS316 Ball, RPTFE Seat
- Flange Connection according to ASME B16.5
- Locking Handle for Valve Locakability
- Blow-Out-Proof Stem Design
- Graphite Packing
- Fire Safe and Anti-statis Design with R-PTFE seat materials
- Working Pressure of Class 150 for Water, Oil, or Gas Medium Application for FBV426F/150
- Working Pressure of Class 300 for Water, Oil, or Gas Medium Application for FBV426F/300
- Design fully complies with ASME B16.34 and API 607
- Tested in accordance with API 598
- 1/2" to 5 " Lever,
- 6" Lever or Gear,
- 8" to 10" Gear
- 1/2" to 1 1/4" Solid ball,
- 1 1/2" to 10" Hollow ball
