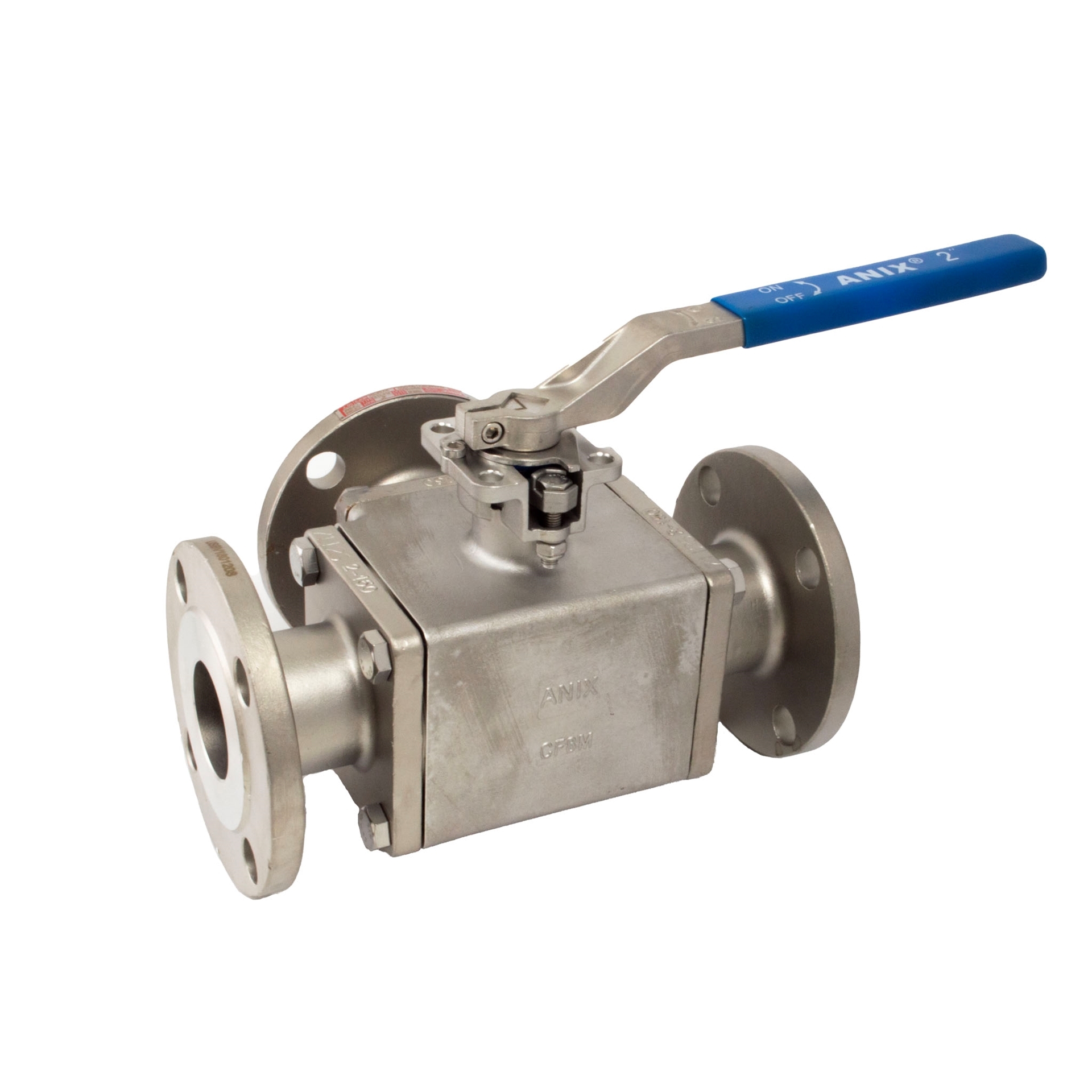

- ANIX CF8M Flanged 3-Way Ball Valve
- T port, Stainless Steel, PTFE Seat
- Full Bore, Pad locking device
- Blow-out-proof stem design
- High and Low Mounted pad: ISO 5211
- Design: ASME B16.34
- Face to Face - ASME B16.10
- Flange end connection - ASME16.5
- Test and inspection inaccordance with API 598
- Working Pressure Class 150
- Temperature Range -20F to 356F for RPTFE -20F to 302F for PTFE
- Application medium: Water, Oil and Gas.
- Sizes: 1" to 4"
