- Investment Cast Stainless Steel

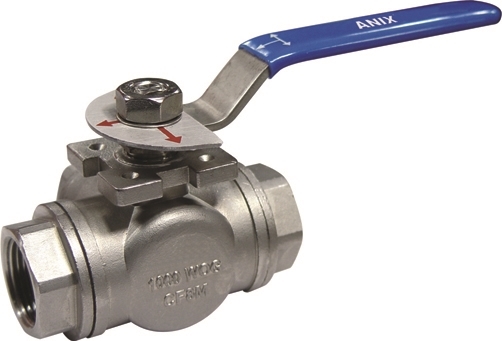

- L Port 3-Way Ball Valve Variants
- NPT Threaded End Connection (ANSI B1.20.1)
- High Mounting Pad Design Fully Complies with ISO 5211
- Locking Handle for Valve Locakability, Low-Mounted Design
- Blow-Out-Proof Stem Design
- R-PTFE, or High-Temp PTFE (When Requested) seat materials
- Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application
- Design fully complies with ASME B16.34
- Tested in accordance to API 598
- Sizes: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
