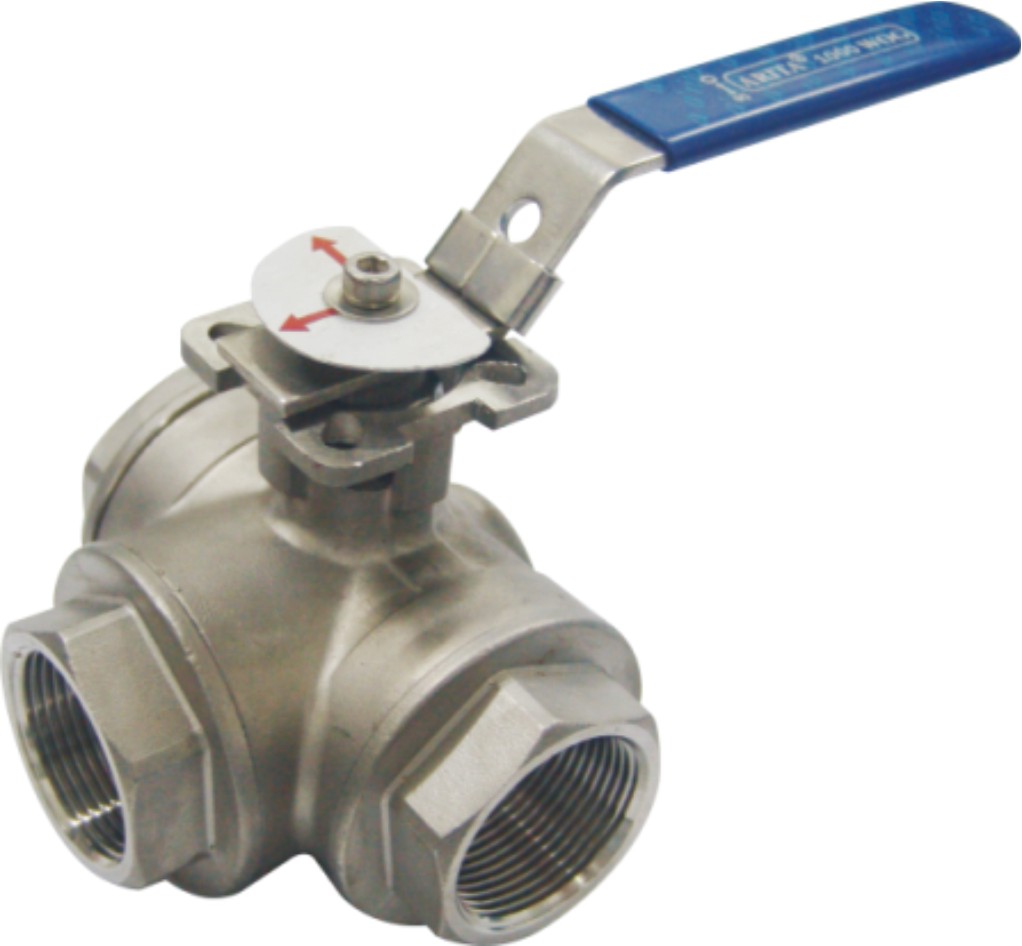

SS 316 3 Way L Port Ball Valve 1000 FNPT - ISO Direct Mount

3-Way L Port Ball Valve , 316SS

Available with High ISO Mounting Pad
Sizes: 1/4" to 2"

Investment Cast Stainless Steel, also available in High-Mounted Design

L Port or T Port 3-Way Ball Valve Variants

NPT Threaded End Connection (ANSI B1.20.1)

High Mounting Pad Design Fully Complies with ISO 5211

Locking Handle for Valve Locakability, in both Low or High-Mounted Design

Blow-Out-Proof Stem Design

Available in PTFE, R-PTFE, or High-Temp PTFE (When Requested) seat materials

Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application

Design fully complies with ASME B16.34

Tested in accordance to API 598

1/4" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/25

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

1/4" SS 316 3 Way L Port Ball Valve 1000 RPTFE FNPT - ISO Direct Mount

Availability: In stock

SKU: BVH14R6N/1000/25

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

3/8" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: Out of stock

SKU: BVH14F6N/1000/35

1/2" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/50

1/2" SS 316 3 Way L Port Ball Valve 1000 RPTFE FNPT - ISO Direct Mount

Availability: In stock

SKU: BVH14R6N/1000/50

ADD Pneumatic Actuator

AN-042D Double acting
AN-050S Spring return

3/4" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/75

ADD Pneumatic Actuator

AN-050D Double acting
AN-050S Spring return

1" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/100

ADD Pneumatic Actuator

AN-050D Double acting
AN-063S Spring return

1 1/4" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: Out of stock

SKU: BVH14F6N/1000/125

1 1/2" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/150

ADD Pneumatic Actuator

AN-075D Double acting
AN-90S Spring return

1 1/2" SS 316 3 Way L Port Ball Valve 1000 RPTFE FNPT - ISO Direct Mount

Availability: In stock

SKU: BVH14R6N/1000/150

ADD Pneumatic Actuator

AN-075D Double acting
AN-090S Spring return

2" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: In stock

SKU: BVH14F6N/1000/200

ADD Pneumatic Actuator

AN-075D Double acting
AN-090S Spring return

3" SS 316 3 Way L Port Ball Valve 1000 FNPT PTFE - ISO Direct Mount

Availability: Out of stock

SKU: BVH14F6N/1000/300

Description

Click here to download cutsheet.

Click to download product literature.

Investment Cast Stainless Steel, also available in High-Mounted Design.
NPT Threaded End Connection (ANSI B1.20.1)
High Mounting Pad Design Fully Complies with ISO 5211
Locking Handle for Valve Locakability, in both Low or High-Mounted Design
Blow-Out-Proof Stem Design
Available in PTFE, R-PTFE, or High-Temp PTFE (When Requested) seat materials
Working Pressure of 1000 Psi for Water, Oil, or Gas Medium Application
Design fully complies with ASME B16.34
Tested in accordance to API 598
Sizes: 1/4" to 2"
